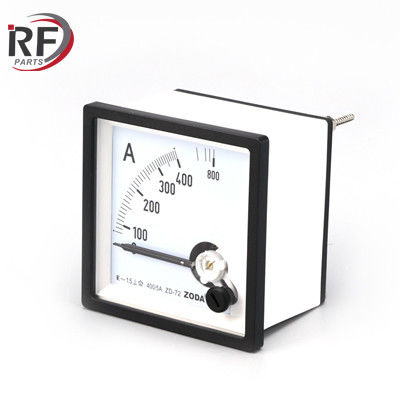

RF PARTS ZD96-COSφ AC power factor meter Temperature Control Box Ammeter


RF PARTS ZD96-COSφ AC power factor meter Temperature Control Box Ammeter

This series of instruments is a rectifier system composed of a magneto electric system plus a rectifier or resistor and a shunt. The instrument is composed of a measuring circuit, a measuring mechanism, and an indicating device. The supporting part is made of jewel bearings and shaft tips, and the movable part is made of the system, moving coil and pointer constitute the measurement of current and voltage.


1. Accuracy level: 1.5 2.5;

2. Operating environment conditions: Allowable working environment temperature limit -25 ℃ ～ + 40 ℃, relative atmospheric humidity 25% -80% RH, there may be slight dust in the air;

3. The instrument withstands external mechanical forces as an ordinary type;

4. Insulation strength: AC sinusoidal 50Hz voltage, no breakdown at 2KV / 1min test, flash circuit;

5. Working position: vertical installation and use.


1. The ammeter is connected in series in the measured line, and the voltmeter is connected in parallel between the measured lines;

2. Ammeters and voltmeters that need to be used in conjunction with current transformers and voltage transformers should be connected in series and parallel to the two ends of the current and voltage transformers in series.


1. The packaging of the instrument and accessories conforms to the provisions of GB / T15464-1995;

2. The basic environment for transportation and storage under packaging conditions: the maximum temperature does not exceed + 55 ° C and the minimum temperature does not fall below -40 ° C. Relative to atmospheric humidity (25 ℃) does not exceed 90%. In conscious storage, the instrument should be protected from severe vibration and moisture.

3. Under non-packaged conditions, the instrument and accessories should have an indoor temperature of 0-40 ° C and a relative atmospheric humidity of not more than 85%, and should not contain harmful substances sufficient to cause corrosion in the air;

4. The instrument and accessories are stored in the warehouse, and they should be kept on the shelf under the condition of the original packaging of the manufacturer.


This series of ammeters and voltmeters are suitable for electronic instruments and some electrical equipment in the distribution systems of general industrial enterprises, industrial and mining enterprises, and are used to measure the current and voltage values in the system.
