| Place of Origin: | CHINA |
| Brand Name: | RF PARTS |
| Model Number: | RF-3154F 3CPX1500A7 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Sponge+Inner box+Sponge+Outer box |
| Payment Terms: | T/T, Western Union, PayPal |
| Plate Dissipation: | 1500W | Cooling: | Forced Air |
|---|---|---|---|
| Type: | Forced Air Or Liquid Triode | Filament Voltage: | 5.5V |
| Filament Current: | 11.2A | Transconductance: | 55mA/V |
| Amplification Factor: | 200 |

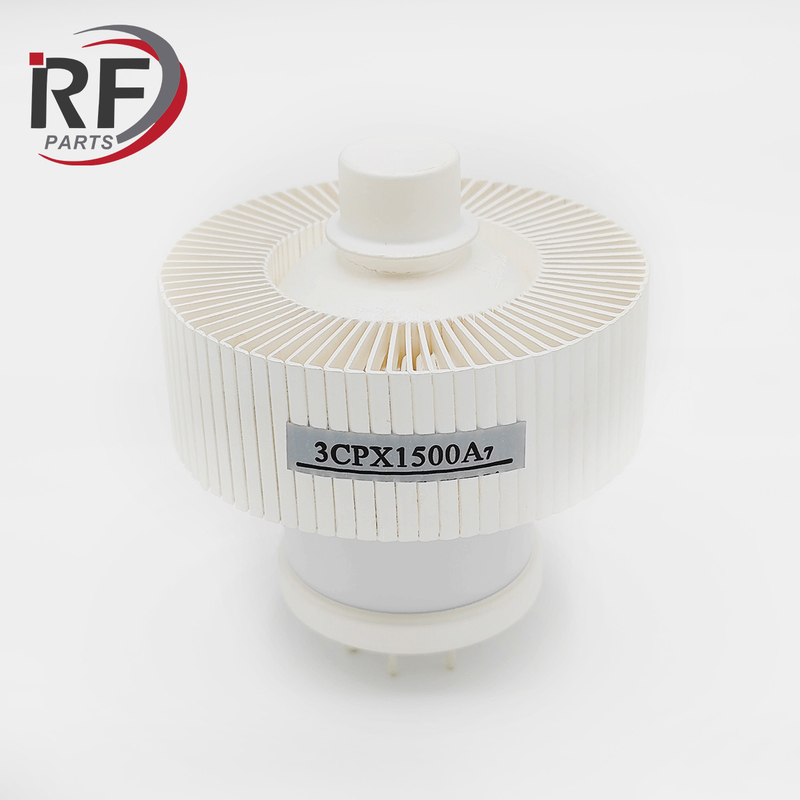

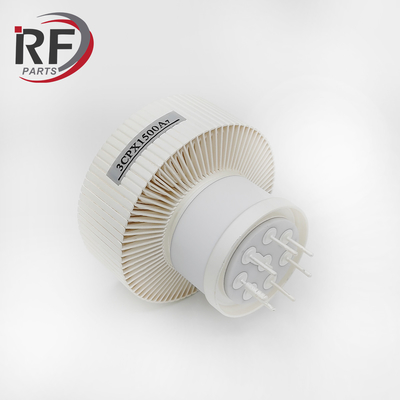

Pulsed Modulator tube RF-3154F 3CPX1500A7 Forced air or liquid triode
The RF-3154F 3CPX1500A7 electron tube is a cermet structure, which directly heats the helium tungsten cathode and the forced triode. The maximum operating frequency is MHz, the maximum anode power dissipation is 1500W, and the maximum output power of the anode is 25W. Tube type is mainly used for industrial radio frequency heating,mainly used in industrial RF heating equipment.
| Filament Voltage | 5.5V |
| Filament Current |
11.2A |
| Plate Dissipation | 1500W |
| Maximum operating frequency | 25MHz |
| Cooling | Forced air |
The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
| 4CX250B/7203 | 3CX15000A3 | 4CPW1000KA/9009 | 4CX20000E | 3CW2500C7/YU-157 | ML-6425F |
| 4CX250B/M - 7203A | 3CX10000D3 | 4CPW1000KB | RS2048CJ | 3CPX800A7 | ML-6426 |
| 4CX250BC/8957 | 3CX1200D7/YU-121 | 4CPW100KA/Y-841 | 4CW10000B | 3CW30000H7 | ML-6426K |
| 4CX250FG/8621 | 3CX1200Z7/YU-181 | 4CPW300,000A/9008 | 4CX20000C | 3CW20000A7 | ML-6427 |
| 4CX250R/7680W | 3CX15,000A7 | RS3026CJ | 3CX4500F3/YU-108 | 3CX10000H3 | ML-7480A |
| 4CX3000A/8169 | 3CX1500A7/8877 | 4CX5,000R/8170W | 3CX5000A3 | 3CW5000A7 | ML-7482 |

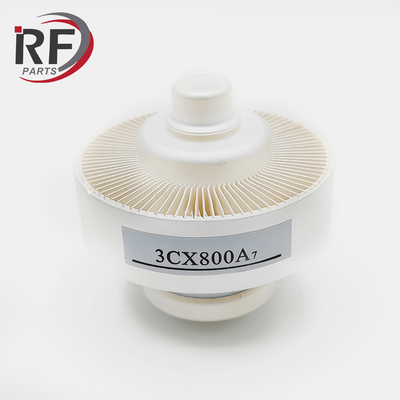

| 4CX300A/8167 | 3CX20,000A7 | 5CX1500B | 3CX5000H3 | 3CW5000H7 | ML-7560 |
The electron vacuum power tubes are mainly used for broadcast, communications, radar, industrial heating, semiconductor processing, science and medical applications as below
• Induction and dielectric heating
• Steel pipe production
• X-ray spectroscopy
• Television transmission• High Frequency Cylinder Welding
• High-frequency heating
• Vacuum tube amplifier
• Radar scanning
• Radio communications
• Plastic & textile Processing
• Linear accelerator
• RF radio broadcasting
• MRI medical systems
• Semiconductor processing
