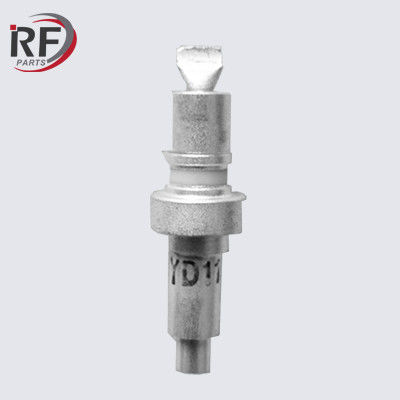

High frequency electron tube YD-1102 7000MHz 15W Naturally cooled triode

The YD-1102 type electron tube is a cermet structure, a side thermal oxide pole and a planar gate triode. The cooling method is natural cooling. The maximum operating frequency is 7000MHz, the maximum anode dissipation power is 15W, the maximum working voltage of the anode is 1300V, and the rated anode. Pulse output power is not less than 350W. Mainly used in gate amplifiers.

The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
