| Place of Origin: | CN |
| Brand Name: | RF PARTS |
| Model Number: | RF-724S |
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | T/T, Western Union, PayPal |
| Plate Dissipation: | 2.5KW | Maximum Operation Frequency: | 110MHz |
|---|---|---|---|
| Cooling: | Forced Water | Type: | Water-cooled Triode |

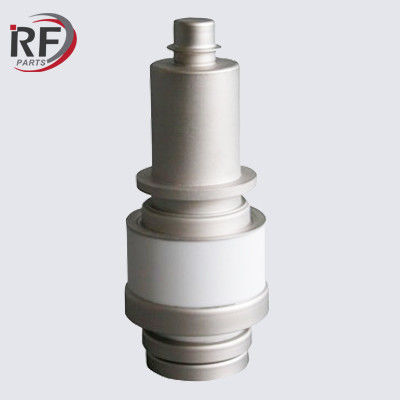

The RF-724S electronic cermet structure, forced water cooling, Direct heating mesh thorium tungsten cathode, cermet structure, high magnification medium power triode. The maximum working frequency is 11MHz, the maximum anode dissipation power is 2.5KW, and the maximum output power is 3.5KW. It is mainly used as an oscillator in 2~3KW industrial high-frequency heating equipment.
| Filament Voltage | 6V |
| Filament Current | 50±5A |
| Plate Dissipation | 2.5kW |
| Maximum operating frequency | 110MHz |
| Cooling | Forced Water |
The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
| 4CX250B/7203 | 3CX1000A7 | 4CPW1000KA/9009 | 4CX20.000B | 3CW2500C7/YU-157 | ML-6425F |
| 4CX250B/M - 7203A | 3CX1200A7 | 4CPW1000KB | 4CX3000A | 3CW30,000A7 | ML-6426 |
| 4CX250BC/8957 | 3CX1200D7/YU-121 | 4CPW100KA/Y-841 | 4CX35,000C | 3CW30,000H7 | ML-6426K |
| 4CX250FG/8621 | 3CX1200Z7/YU-181 | 4CPW300,000A/9008 | 3CX2500H3 | 3CW40,000A5 | ML-6427 |
| 4CX250R/7680W | 3CX15,000A7 | 4CW30,000B | 3CX4500F3/YU-108 | 3CW40,000A7 | ML-7480A |
| 4CX3000A/8169 | 3CX1500A7/8877 | 4CX5,000R/8170W | 3CX5000A3 | 3CW5000A7 | ML-7482 |
| 4CX300A/8167 | 3CX20,000A7 | 5CX1500B | 3CX5000H3 | 3CW5000H7 | ML-7560 |
The electron vacuum power tubes are mainly used for broadcast, communications, radar, industrial heating, semiconductor processing, science and medical applications as below
• Induction and dielectric heating
• Steel pipe production
• X-ray spectroscopy
• Television transmission• High Frequency Cylinder Welding
• High-frequency heating
• Vacuum tube amplifier
• Radar scanning
• Radio communications
• Plastic & textile Processing
• Linear accelerator
• RF radio broadcasting
• MRI medical systems
• Semiconductor processing
