| Place of Origin: | CN |
| Brand Name: | RF PARTS |
| Model Number: | 3CW5000F3 |
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | T/T, Western Union, PayPal |
| Plate Dissipation: | 5KW | Maximum Operation Frequency: | -- |
|---|---|---|---|
| Cooling: | Forced Water | Type: | Water-cooled Triode |

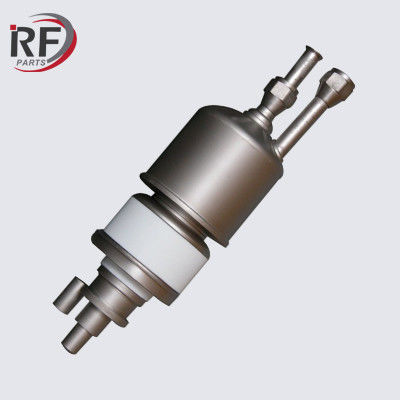

Ceramic Tubes for Class AB1 audio amplifiers 3CW5000F3 Water-cooled triode
The 3CW5000F3 electron tube is a cermet structure, a tungsten-carbide tungsten cathode, and a low-magnification water-cooled transistor. The maximum anode dissipation power is 5kW, the maximum gate dissipation power is 150W, and the anode output power is 10kW. Mainly used for audio amplifiers and modulators. The tube-type grid and filament lead-out rings have flexible leads for easy installation.
The tube works in an AB Class 1 audio amplifier with an anode voltage of 6 kV and a dual-tube maximum anode output power of 13 kW.
| Filament Voltage | 7.5V |
| Filament Current | 51.5A |
| Plate Dissipation | 5kW |
| Maximum operating frequency | -- |
| Cooling | Forced Water |
The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
| 4CX250B/7203 | 3CX1000A7 | 4CPW1000KA/9009 | 4CX20.000B | 3CW2500C7/YU-157 | ML-6425F |
| 4CX250B/M - 7203A | 3CX1200A7 | 4CPW1000KB | 4CX3000A | 3CW30,000A7 | ML-6426 |
| 4CX250BC/8957 | 3CX1200D7/YU-121 | 4CPW100KA/Y-841 | 4CX35,000C | 3CW30,000H7 | ML-6426K |
| 4CX250FG/8621 | 3CX1200Z7/YU-181 | 4CPW300,000A/9008 | 3CX2500H3 | 3CW40,000A5 | ML-6427 |
| 4CX250R/7680W | 3CX15,000A7 | 4CW30,000B | 3CX4500F3/YU-108 | 3CW40,000A7 | ML-7480A |
| 4CX3000A/8169 | 3CX1500A7/8877 | 4CX5,000R/8170W | 3CX5000A3 | 3CW5000A7 | ML-7482 |
| 4CX300A/8167 | 3CX20,000A7 | 5CX1500B | 3CX5000H3 | 3CW5000H7 | ML-7560 |
The electron vacuum power tubes are mainly used for broadcast, communications, radar, industrial heating, semiconductor processing, science and medical applications as below
• Induction and dielectric heating
• Steel pipe production
• X-ray spectroscopy
• Television transmission• High Frequency Cylinder Welding
• High-frequency heating
• Vacuum tube amplifier
• Radar scanning
• Radio communications
• Plastic & textile Processing
• Linear accelerator
• RF radio broadcasting
• MRI medical systems
• Semiconductor processing
