| Place of Origin: | CN |
| Brand Name: | RF PARTS |
| Model Number: | YU-191B |
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | T/T, Western Union, PayPal |
| Plate Dissipation: | 7KW | Maximum Operation Frequency: | 75MHz |
|---|---|---|---|
| Cooling: | Forced Water | Type: | Water-cooled Triode |

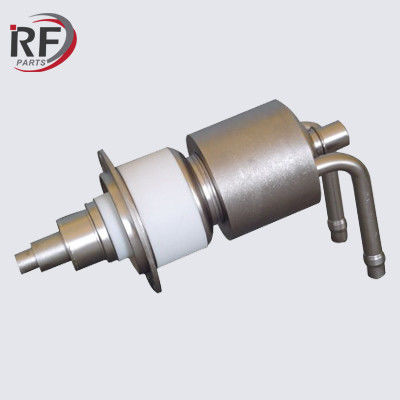

Water-cooled triode YU-191B Electron tube for industrial high-frequency heating
The YU-191B electron tube is a cermet structure, a direct thermal helium-tungsten cathode, and an anode water-cooled power transistor. The maximum operating frequency is 75MHz, the maximum dissipated power of the anode is 7kW, and the maximum dissipated power of the grid is 225W. It is mainly used for industrial high-frequency heating.
| Filament Voltage | 7.5V |
| Filament Current | 51.5A |
| Plate Dissipation | 7kW |
| Maximum operating frequency | 75MHz |
| Cooling | Forced Air |
The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
| 4CX250B/7203 | 3CX1000A7 | 4CPW1000KA/9009 | 4CX20.000B | 3CW2500C7/YU-157 | ML-6425F |
| 4CX250B/M - 7203A | 3CX1200A7 | 4CPW1000KB | 4CX3000A | 3CW30,000A7 | ML-6426 |
| 4CX250BC/8957 | 3CX1200D7/YU-121 | 4CPW100KA/Y-841 | 4CX35,000C | 3CW30,000H7 | ML-6426K |
| 4CX250FG/8621 | 3CX1200Z7/YU-181 | 4CPW300,000A/9008 | 3CX2500H3 | 3CW40,000A5 | ML-6427 |
| 4CX250R/7680W | 3CX15,000A7 | 4CW30,000B | 3CX4500F3/YU-108 | 3CW40,000A7 | ML-7480A |
| 4CX3000A/8169 | 3CX1500A7/8877 | 4CX5,000R/8170W | 3CX5000A3 | 3CW5000A7 | ML-7482 |
| 4CX300A/8167 | 3CX20,000A7 | 5CX1500B | 3CX5000H3 | 3CW5000H7 | ML-7560 |
The electron vacuum power tubes are mainly used for broadcast, communications, radar, industrial heating, semiconductor processing, science and medical applications as below
• Induction and dielectric heating
• Steel pipe production
• X-ray spectroscopy
• Television transmission• High Frequency Cylinder Welding
• High-frequency heating
• Vacuum tube amplifier
• Radar scanning
• Radio communications
• Plastic & textile Processing
• Linear accelerator
• RF radio broadcasting
• MRI medical systems
• Semiconductor processing
