| Place of Origin: | CN |
| Brand Name: | RF PARTS |
| Model Number: | RF-3020S ITK30-2 |
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | T/T, Western Union, PayPal |
| Plate Dissipation: | 50kW | Maximum Operation Frequency: | 100MHz |
|---|---|---|---|
| Cooling: | Forced Water | Type: | Forced Water Triode |

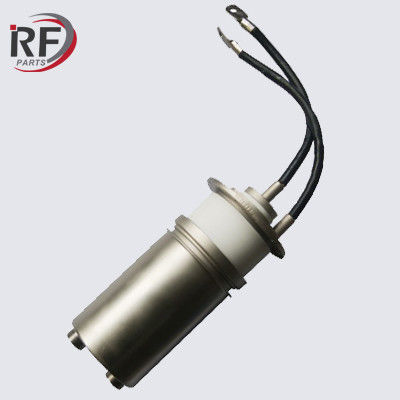

Industrial RF heating triode RF-3020S ITK30-2 Forced water triode
The RF-3020S ITK30-2 electron tube is a cermet structure, which directly heats the helium tungsten cathode and the forced triode. The maximum operating frequency is 100MHz, the maximum anode power dissipation is 50KW, and the maximum output power of the anode is 130KW. Tube type is mainly used for industrial radio frequency heating,mainly used for industrial high-frequency heating.
| Filament Voltage | 11V |
| Filament Current |
240A |
| Plate Dissipation | 50KW |
| Maximum operating frequency | 100MHz |
| Cooling | Forced water |
The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
| 4CX250B/7203 | 3CX15000A3 | 4CPW1000KA/9009 | 4CX20000E | 3CW2500C7/YU-157 | ML-6425F |
| 4CX250B/M - 7203A | 3CX10000D3 | 4CPW1000KB | RS2048CJ | 3CPX800A7 | ML-6426 |
| 4CX250BC/8957 | 3CX1200D7/YU-121 | 4CPW100KA/Y-841 | 4CW10000B | 3CW30000H7 | ML-6426K |
| 4CX250FG/8621 | 3CX1200Z7/YU-181 | 4CPW300,000A/9008 | 4CX20000C | 3CW20000A7 | ML-6427 |
| 4CX250R/7680W | 3CX15,000A7 | RS3026CJ | 3CX4500F3/YU-108 | 3CX10000H3 | ML-7480A |
| 4CX3000A/8169 | 3CX1500A7/8877 | 4CX5,000R/8170W | 3CX5000A3 | 3CW5000A7 | ML-7482 |
| 4CX300A/8167 | 3CX20,000A7 | 5CX1500B | 3CX5000H3 | 3CW5000H7 | ML-7560 |
The electron vacuum power tubes are mainly used for broadcast, communications, radar, industrial heating, semiconductor processing, science and medical applications as below
• Induction and dielectric heating
• Steel pipe production
• X-ray spectroscopy
• Television transmission• High Frequency Cylinder Welding
• High-frequency heating
• Vacuum tube amplifier
• Radar scanning
• Radio communications
• Plastic & textile Processing
• Linear accelerator
• RF radio broadcasting
• MRI medical systems
• Semiconductor processing
